TK70110M - 1.0 V LOW DROPOUT LINEAR REGULATOR

Description

The TK701xx is a very low dropout, low input voltage operation regulator suitable for single battery cell applications.

This regulator provides 1.0 V output with a dropout voltage of only 30 mV.

The active low control provides on/ off switching of the output.

Features

  • s s s s s s Low Input Voltage Operation (Single Battery Cell) Internal PNP Transistor Built-In Shutdown Control (Off Current, 10 µA Typ) Low Dropout Voltage (30 mV Typ) High Speed ON/OFF Transient, (15 µs Typ) Very Small Surface Mount Package (SOT-25).

📥 Download Datasheet

Datasheet Details

Part number TK70110M
Manufacturer TOKO
File Size 116.72 KB
Description 1.0 V LOW DROPOUT LINEAR REGULATOR
Datasheet download datasheet TK70110M Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
TK70A06J1 N-Channel MOSFET Toshiba Semiconductor
TK70D06J1 N-Channel MOSFET Toshiba Semiconductor
TK70J04J3 Silicon N-Channel MOSFET Toshiba Semiconductor
TK70J04K3Z N-Channel MOSFET INCHANGE
TK70J04K3Z MOSFETs Toshiba Semiconductor

Other Datasheets by TOKO

Part Number Description
TK70001 SINGLE INPUT/ TWO OUTPUT SOLID STATE SWITCH
TK70002 SINGLE INPUT/ TWO OUTPUT SOLID STATE SWITCH
TK70003 SINGLE OUTPUT/ TWO INPUT SOLID STATE SWITCH
TK70203M 1.03 V REGULATOR WITH ON/OFF SWITCH
TK70403 1.03 V REGULATOR WITH ON/OFF SWITCH

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

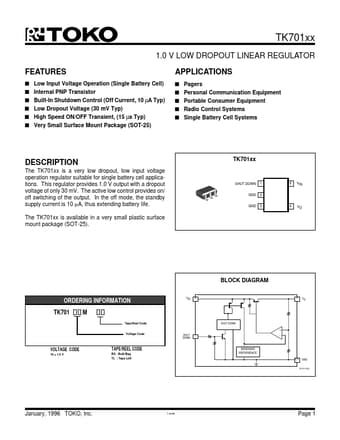

TK701xx 1.0 V LOW DROPOUT LINEAR REGULATOR FEATURES s s s s s s Low Input Voltage Operation (Single Battery Cell) Internal PNP Transistor Built-In Shutdown Control (Off Current, 10 µA Typ) Low Dropout Voltage (30 mV Typ) High Speed ON/OFF Transient, (15 µs Typ) Very Small Surface Mount Package (SOT-25) APPLICATIONS s s s s s Pagers Personal Communication Equipment Portable Consumer Equipment Radio Control Systems Single Battery Cell Systems DESCRIPTION The TK701xx is a very low dropout, low input voltage operation regulator suitable for single battery cell applications. This regulator provides 1.0 V output with a dropout voltage of only 30 mV. The active low control provides on/ off switching of the output.
