TK70403 - 1.03 V REGULATOR WITH ON/OFF SWITCH

Description

TK70403 is a low dropout, linear regulator with a built-in electronic switch.

A pin for a bypass capacitor is provided, which connects to the internal circuitry to lower the overall output noise level.

Features

  • s s s s s s Low Input Voltage Operation (Single Battery Cell) Internal PNP Transistor Internal Shutdown Control (Off Current, 0.1 µA max) Low Dropout Voltage [30 mV (typ. ) at 2 mA] Miniature Package (SOT-26) Very Low Noise.

📥 Download Datasheet

Datasheet Details

Part number TK70403
Manufacturer TOKO
File Size 61.21 KB
Description 1.03 V REGULATOR WITH ON/OFF SWITCH
Datasheet download datasheet TK70403 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
TK70A06J1 N-Channel MOSFET Toshiba Semiconductor
TK70D06J1 N-Channel MOSFET Toshiba Semiconductor
TK70J04J3 Silicon N-Channel MOSFET Toshiba Semiconductor
TK70J04K3Z N-Channel MOSFET INCHANGE
TK70J04K3Z MOSFETs Toshiba Semiconductor

Other Datasheets by TOKO

Part Number Description
TK70001 SINGLE INPUT/ TWO OUTPUT SOLID STATE SWITCH
TK70002 SINGLE INPUT/ TWO OUTPUT SOLID STATE SWITCH
TK70003 SINGLE OUTPUT/ TWO INPUT SOLID STATE SWITCH
TK70110M 1.0 V LOW DROPOUT LINEAR REGULATOR
TK70203M 1.03 V REGULATOR WITH ON/OFF SWITCH

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

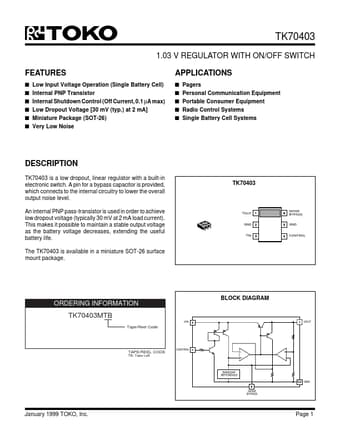

TK70403 1.03 V REGULATOR WITH ON/OFF SWITCH FEATURES s s s s s s Low Input Voltage Operation (Single Battery Cell) Internal PNP Transistor Internal Shutdown Control (Off Current, 0.1 µA max) Low Dropout Voltage [30 mV (typ.) at 2 mA] Miniature Package (SOT-26) Very Low Noise APPLICATIONS s s s s s Pagers Personal Communication Equipment Portable Consumer Equipment Radio Control Systems Single Battery Cell Systems DESCRIPTION TK70403 is a low dropout, linear regulator with a built-in electronic switch. A pin for a bypass capacitor is provided, which connects to the internal circuitry to lower the overall output noise level. An internal PNP pass-transistor is used in order to achieve low dropout voltage (typically 30 mV at 2 mA load current).
