TC74VHC240FT - OCTAL BUS BUFFER

Product Overview

Toshiba

Part number	TC74VHC240FT
Manufacturer	Toshiba
File Size	406.86 KB
Description	OCTAL BUS BUFFER
Datasheet	TC74VHC240FT Datasheet

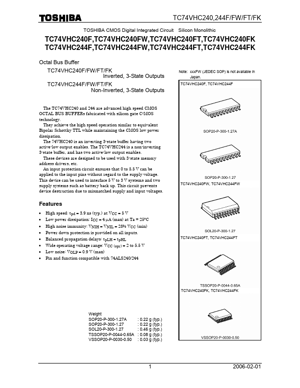

Additional preview pages of the TC74VHC240FT datasheet.

High speed: tpd = 3.9 ns (typ. ) at VCC = 5 V.
Low power dissipation: ICC = 4 µA (max) at Ta = 25°C.
High noise immunity: VNIH = VNIL = 28% VCC (min).
Power down protection is provided on all inputs.
Balanced propagation delays: tpLH ∼.
tpHL.
Wide operating voltage range: VCC (opr) = 2 to 5.5 V.
Low noise: VOLP = 0.9 V (max).
Pin and function compatible with 74ALS240/244 TC74VHC240FW, TC74VHC244FW TC74VHC240FT, TC7.
