TC74VHC240F - Octal Bus Buffer

Product Overview

Toshiba

Part number	TC74VHC240F
Manufacturer	Toshiba
File Size	275.93 KB
Description	Octal Bus Buffer
Datasheet	TC74VHC240F Datasheet

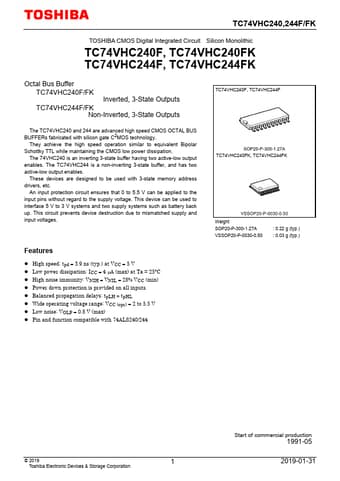

Additional preview pages of the TC74VHC240F datasheet.

High speed: tpd = 3.9 ns (typ. ) at VCC = 5 V.
Low power dissipation: ICC = 4 µA (max) at Ta = 25°C.
High noise immunity: VNIH = VNIL = 28% VCC (min).
Power down protection is provided on all inputs.
Balanced propagation delays: tpLH ∼.
tpHL.
Wide operating voltage range: VCC (opr) = 2 to 5.5 V.
Low noise: VOLP = 0.8 V (max).
Pin and function compatible with 74ALS240/244 TC74VHC240FK, TC74VHC244FK Weight SOP20-P-300-1.27A VSSOP20-P-0030-0.50 :.
