TC74HC02AP, TC74HC02AF - Quad 2-Input NOR Gate

Toshiba Semiconductor

📥 Download Datasheet

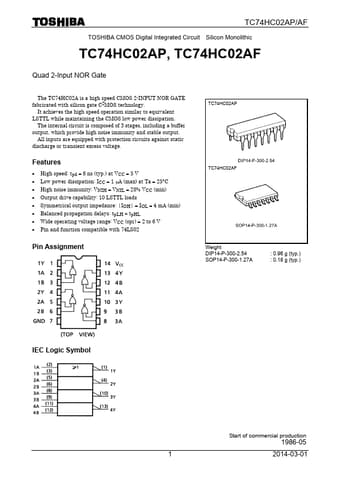

TC74HC02AP Datasheet Preview — This datasheet PDF includes multiple part numbers: TC74HC02AP, TC74HC02AF. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	TC74HC02AP, TC74HC02AF
Manufacturer	Toshiba Semiconductor
File Size	199.23 KB
Description	Quad 2-Input NOR Gate
Datasheet	TC74HC02AF_ToshibaSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: TC74HC02AP, TC74HC02AF. Please refer to the document for exact specifications by model.

TC74HC02AP Product details

Features

High speed: tpd = 6 ns (typ. ) at VCC = 5 V.
Low power dissipation: ICC = 1 μA (max) at Ta = 25°C.
High noise immunity: VNIH = VNIL = 28% VCC (min).
Output drive capability: 10 LSTTL loads.
Symmetrical output impedance: |IOH| = IOL = 4 mA (min).
Balanced propagation delays: tpLH ∼.
tpHL.
Wide operating voltage range: VCC (opr) = 2 to 6 V.
Pin and function compatible with 74LS02 Pin Assignment TC74HC02AP TC74HC02AF.
