TC74HC107AP, TC74HC107 - Dual J-K Flip-Flop

Toshiba

📥 Download Datasheet

TC74HC107AP Datasheet Preview — This datasheet PDF includes multiple part numbers: TC74HC107AP, TC74HC107. Please refer to the document for exact specifications by model.

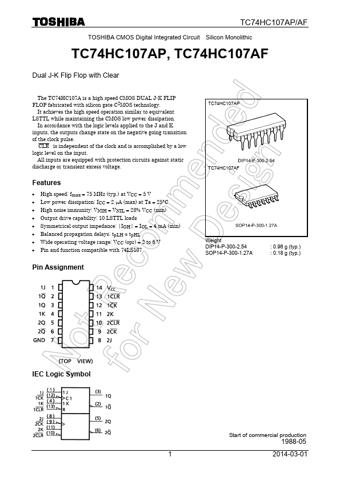

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	TC74HC107AP, TC74HC107
Manufacturer	Toshiba
File Size	223.01 KB
Description	Dual J-K Flip-Flop
Datasheet	TC74HC107_Toshiba.pdf
Note	This datasheet PDF includes multiple part numbers: TC74HC107AP, TC74HC107. Please refer to the document for exact specifications by model.

TC74HC107AP Product details

Features

High speed: fmax = 75 MHz (typ. ) at VCC = 5 V.
Low power dissipation: ICC = 2 μA (max) at Ta = 25°C.
High noise immunity: VNIH = VNIL = 28% VCC (min).
Output drive capability: 10 LSTTL loads.
Symmetrical output impedance: |IOH| = IOL = 4 mA (min).
Balanced propagation delays: tpLH ∼.
