MT3S111P - Silicon-Germanium NPN Epitaxial Planar Type Transistor

Product Overview

Toshiba Semiconductor

📥 Download Datasheet

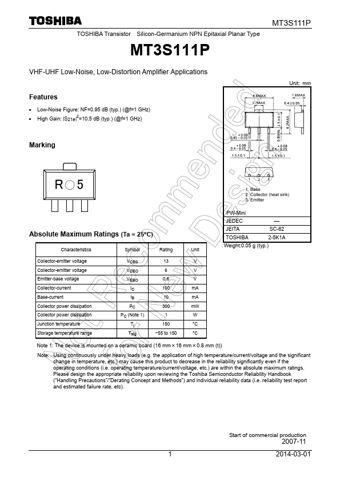

MT3S111P Silicon-Germanium NPN Epitaxial Planar Type Transistor by Toshiba Semiconductor - Datasheet Preview — Datasheet preview – MT3S111P

Datasheet Details

Part number	MT3S111P
Manufacturer	Toshiba Semiconductor
File Size	200.39 KB
Description	Silicon-Germanium NPN Epitaxial Planar Type Transistor
Datasheet	MT3S111P Datasheet
Additional preview pages of the MT3S111P datasheet.

Product details

Features

Low-Noise Figure: NF=0.95 dB (typ. ) (@f=1 GHz).
High Gain: |S21e|2=10.5 dB (typ. ) (@f=1 GHz) Unit: mm Marking R5 Absolute Maximum Ratings (Ta = 25°C) Characteristics Symbol Rating Unit PW-Mini JEDEC ⎯ JEITA SC-62.
