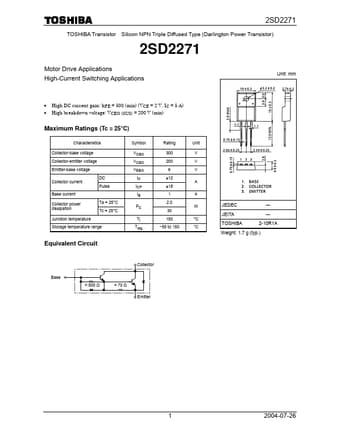

2SD2271 TOSHIBA Transistor Silicon NPN Triple Diffused Type (Darlington Power Transistor) 2SD2271 Motor Drive Applications High-Current Switching App.

📥 Download Datasheet

Preview of D2271 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Applications

* High-Current Switching Applications Unit: mm
* High DC current gain: hFE = 500 (min) (VCE = 2 V, IC = 5 A)
* High breakdown voltage: VCEO (SUS) = 200 V (min) Maximum Ratings (Tc = 25°C) Characteristics Collector-base voltage Collector-emitter voltage Emitter-base voltage Coll
