D2202 - 2SD2202

Features

  • Low collector-to-emitter saturation voltage.
  • Large current capacity.
  • Micaless package facilitating easy mounting. Package Dimensions unit:mm 2041A [2SB1454/2SD2202] ( ) : 2SB1454 Specifications 1 : Base 2 : Collector 3 : Emitter SANYO : TO-220ML Absolute Maximum Ratings at Ta = 25˚C Parameter Symbol Conditions Ratings Unit Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Collector Dissipation Ju.

📥 Download Datasheet

📁 Similar Datasheet

  • D2202UK - METAL GATE RF SILICON FET (Seme LAB)
  • D2200N - Rectifier Diode (Infineon)
  • D2201N - Crow Bar Diode (Infineon)
  • D2201UK - METAL GATE RF SILICON FET (Seme LAB)
  • D2203UK - METAL GATE RF SILICON FET (Seme LAB)
  • D2204 - 2SD2204 (Toshiba Semiconductor)
  • D2204UK - METAL GATE RF SILICON FET (Seme LAB)
  • D2205UK - METAL GATE RF SILICON FET (Seme LAB)
  • D2206 - 2SD2206 (Toshiba)
  • D2208UK - METAL GATE RF SILICON FET (Seme LAB)
Other Datasheets by Sanyo
  • D2200 - PNP/NPN Epitaxial Planar Silicon Transistors
  • D2201 - PNP/NPN Epitaxial Planar Silicon Transistors
  • D2218 - 2SD2218
  • D2219 - 2SD2219
  • D2223 - PNP/NPN Epitaxial Planar Silicon Transistors
  • D2224 - PNP/NPN Epitaxial Planar Silicon Transistors
  • D2280 - PNP/NPN Epitaxial Planar Silicon Transistors
  • D2281 - PNP/NPN Epitaxial Planar Silicon Transistors

Full PDF Text Transcription

Click to expand full text

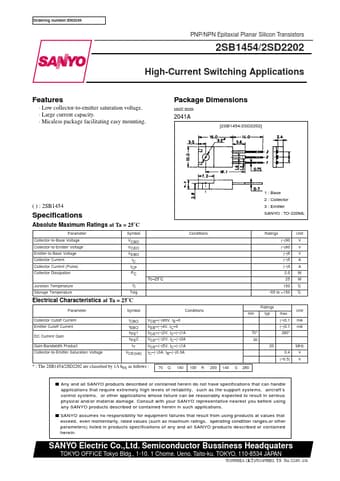

Ordering number:EN3249 PNP/NPN Epitaxial Planar Silicon Transistors 2SB1454/2SD2202 High-Current Switching Applications Features · Low collector-to-emitter saturation voltage. · Large current capacity. · Micaless package facilitating easy mounting. Package Dimensions unit:mm 2041A [2SB1454/2SD2202] ( ) : 2SB1454 Specifications 1 : Base 2 : Collector 3 : Emitter SANYO : TO-220ML Absolute Maximum Ratings at Ta = 25˚C Parameter Symbol Conditions Ratings Unit Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Collector Dissipation Junction Temperature Storage Temperature VCBO VCEO VEBO IC ICP PC Tj Tstg Tc=25˚C (–)90 (–)80 (–)6 (–)5 (–)9 2.
