D2204 2SD2204

D2204 Description

2SD2204 TOSHIBA Transistor Silicon NPN Triple Diffused Type 2SD2204 High-Power Switching Applications Hammer Drive, Pulse Motor Drive Applications Un.

D2204 Applications

* Hammer Drive, Pulse Motor Drive Applications Unit: mm
* High DC current gain: hFE = 2000 (min) (VCE = 3 V, IC = 1.5 A) Low saturation voltage: VCE (sat) = 1.5 V (max) (IC = 1.5 A) Absolute Maximum Ratings (Tc = 25°C) Characteristics S Collector-base voltage Collector-emitter vol

📥 Download Datasheet

Preview of D2204 PDF

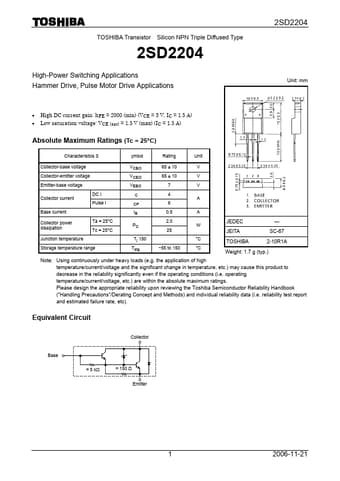

datasheet Preview Page 2 datasheet Preview Page 3
