XC9511 Synchronous Step-Down DC/DC Converter

XC9511 Description

www.DataSheet4U.com XC9511 Series Synchronous Step-Down DC/DC Converter with built-in LDO Regulator in parallel plus Voltage Detector Preliminary ! S.
The XC9511 series consists of a step-down DC/DC converter and a high-speed LDO regulator connected in parallel with the DC/DC converter's output.

XC9511 Features

* Input Voltage Range : Load Capacitors : 2.4V ~ 6.0V Ceramic Capacitor Compatible (Low ESR Capacitors) VD Function : Detects output voltage from the VDOUT pin while sensing either VDD, DCOUT, or VROUT internally. Nch Open Drain Output Output Voltage Range : 0.9V ~ 4.0V (Accuracy ±2

📥 Download Datasheet

Preview of XC9511 PDF

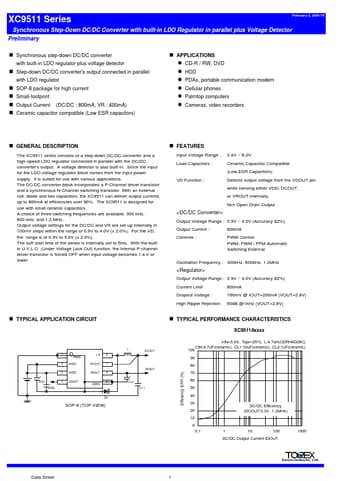

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
XC9511
Manufacturer
Torex Semiconductor
File Size
196.75 KB
Datasheet
XC9511_TorexSemiconductor.pdf
Description
Synchronous Step-Down DC/DC Converter
