TD100A-SP1 - Current Transducers

Topstek

📥 Download Datasheet

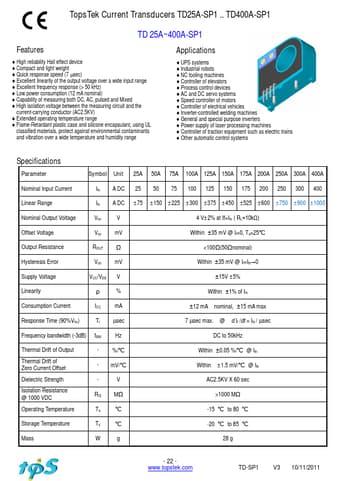

TD100A-SP1 Datasheet Preview — Preview of TD100A-SP1 PDF

datasheet Preview Page 2

Datasheet Details

Part number	TD100A-SP1
Manufacturer	Topstek
File Size	406.33 KB
Description	Current Transducers
Datasheet	TD100A-SP1-Topstek.pdf

TD100A-SP1 Product details

Features

High reliability Hall effect device.
Compact and light weight.
Quick response speed (7 µsec).
Excellent linearity of the output voltage over a wide input range.
Excellent frequency response (> 50 kHz).
Low power consumption (12 mA nominal).
Capability of measuring both DC, AC, pulsed and Mixed.
High isolation voltage between the measuring circuit and the current-carrying conductor (AC2.5KV).
Extended operating temp.
