TD100A - Current Transducers

Topstek

📥 Download Datasheet

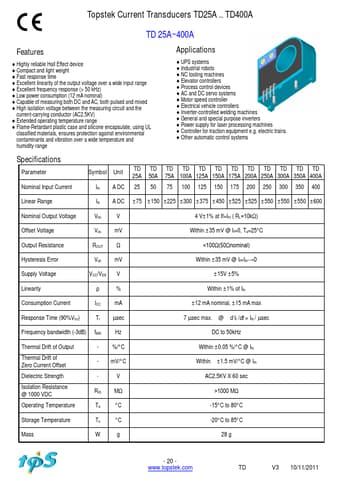

TD100A Datasheet Preview — Preview of TD100A PDF

datasheet Preview Page 2

Datasheet Details

Part number	TD100A
Manufacturer	Topstek
File Size	297.56 KB
Description	Current Transducers
Datasheet	TD100A-Topstek.pdf

TD100A Product details

Features

Highly reliable Hall Effect device.
Compact and light weight.
Fast response time.
Excellent linearity of the output voltage over a wide input range.
Excellent frequency response (> 50 kHz).
Low power consumption (12 mA nominal).
Capable of measuring both DC and AC, both pulsed and mixed.
High isolation voltage between the measuring circuit and the current-carrying conductor (AC2.5KV).
Extended operating temperature.
