TD12.5A-LTC - Current Transducers

Download the TD12.5A-LTC datasheet PDF. This datasheet also covers the TD10A-LTC variant, as both devices belong to the same current transducers family and are provided as variant models within a single manufacturer datasheet.

Features

  • TD 4A~25A-LTC.
  • Highly reliable Hall Effect device.
  • Compact and light weight.
  • Fast response time.
  • Excellent linearity of the output voltage over a wide input range.
  • Excellent frequency response (> 25 kHz).
  • Low power consumption (12 mA nominal).
  • Capable of measuring both DC and AC, both pulsed and mixed.
  • High isolation voltage between the measuring circuit and the current-carrying conductor (AC2.5KV).
  • Extended opera.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (TD10A-LTC-Topstek.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number TD12.5A-LTC
Manufacturer Topstek
File Size 297.07 KB
Description Current Transducers
Datasheet download datasheet TD12.5A-LTC Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
TD1200 Crystal Clock Oscillators Nihon Dempa Kogyo
TD1204 LOW-CURRENT SIGFOX GATEWAY AND GPS RECEIVER TELECOM
TD1207R Low-Current SIGFOX Gateway Telecom
TD1208 LOW-CURRENT SIGFOX GATEWAY TELECOM
TD1208R Low-Current SIGFOX Gateway Telecom

Other Datasheets by Topstek

Part Number Description
TD125A Current Transducers
TD125A Topstek Current Transducers
TD125A-SP1 Current Transducers
TD100A Current Transducers
TD100A-SP1 Current Transducers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

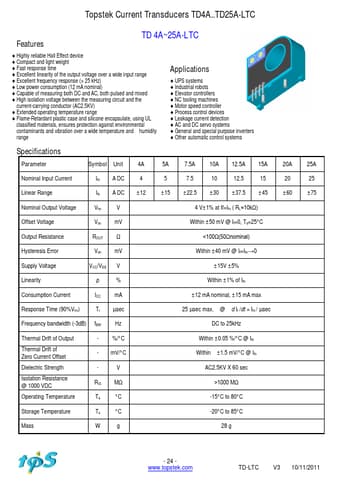

Topstek Current Transducers TD4A..TD25A-LTC Features TD 4A~25A-LTC ♦ Highly reliable Hall Effect device ♦ Compact and light weight ♦ Fast response time ♦ Excellent linearity of the output voltage over a wide input range ♦ Excellent frequency response (> 25 kHz) ♦ Low power consumption (12 mA nominal) ♦ Capable of measuring both DC and AC, both pulsed and mixed ♦ High isolation voltage between the measuring circuit and the current-carrying conductor (AC2.
