TD1539 - 3A 380KHz 23V PWM Buck DC/DC Converter

Name: TD1539
SKU: TD1539-1545315

Techcode

The TD1539 by Techcode is a 3A 380KHz 23V PWM Buck DC/DC Converter. Below is the official datasheet preview.

Datasheet Details

Part number	TD1539
Manufacturer	Techcode
File Size	750.53 KB
Description	3A 380KHz 23V PWM Buck DC/DC Converter
Datasheet	TD1539-Techcode.pdf

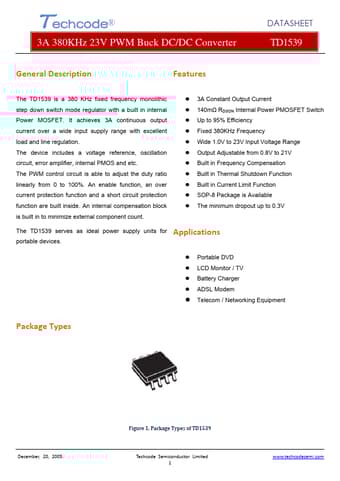

Additional preview pages of the TD1539 datasheet.

The TD1539 is a 380 KHz fixed frequency monolithic step down switch mode regulator with a built in internal Power MOSFET. It achieves 3A continuous output current over a wide input supply range with excellent load and line regulation. The device includes a voltage reference, oscillation circuit, error amplifier, internal PMOS and etc. The PWM control circuit is able to adjust the duty ratio linearly from 0 to 100%. An enable function, an over current protection function and a short circuit prot.
