LK16082R2K-T - Multilayer Chip Inductors

Name: LK16082R2K-T
SKU: LK16082R2K-T-848547

Taiyo Yuden

The LK16082R2K-T by Taiyo Yuden is a Multilayer Chip Inductors. Below is the official datasheet preview.

Datasheet Details

Part number	LK16082R2K-T
Manufacturer	Taiyo Yuden
File Size	118.65 KB
Description	Multilayer Chip Inductors
Datasheet	LK16082R2K-T-TaiyoYuden.pdf

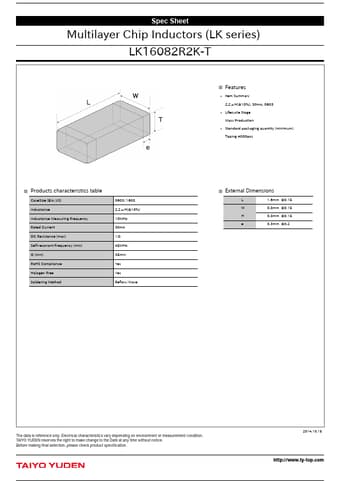

Additional preview pages of the LK16082R2K-T datasheet.

Item Summary 2.2μH(±10%), 30mA, 0603 Lifecycle Stage Mass Production Standard packaging quantity (minimum) Taping 4000pcs Products characteristics table CaseSize (EIA/JIS) Inductance Inductance Measuring Frequency Rated Current DC Resistance (max) Self-resonant Frequency (min) Q (min) RoHS Compliance Halogen Free Soldering Method 0603/1608 2.2μH(±10%) 10MHz 30mA 1Ω 45MHz 35min Yes Yes Reflow/Wave External Dimensions L W H e 1.6mm ±0.15 0.8mm ±0.15 0.8mm ±0.15 0.3mm ±0.2 2014.10.15 The data i.
