LK112 - Low noise and low drop voltage regulator

Name: LK112
SKU: LK112-1263762

STMicroelectronics

The LK112 by STMicroelectronics is a Low noise and low drop voltage regulator. Below is the official datasheet preview.

Datasheet Details

Part number	LK112
Manufacturer	STMicroelectronics
File Size	265.31 KB
Description	Low noise and low drop voltage regulator
Datasheet	LK112-STMicroelectronics.pdf

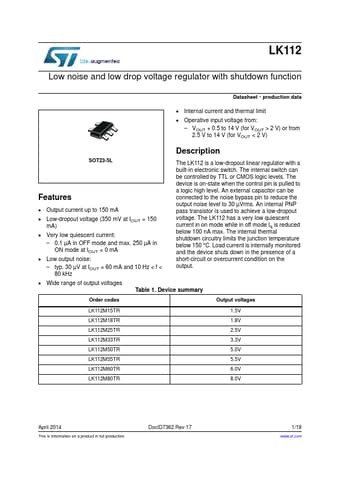

Additional preview pages of the LK112 datasheet.

SOT23-5L

Output current up to 150 mA.
Low-dropout voltage (350 mV at IOUT = 150 mA).
Very low quiescent current:.
0.1 µA in OFF mode and max. 250 µA in ON mode at IOUT = 0 mA.
Low output noise:.
typ. 30 µV at IOUT = 60 mA and 10 Hz < f < 80 kHz The LK112 is a low-dropout linear regulator with a built-in electronic switch. The internal switch can be controlled by TTL or CMOS logic levels. The device is on-state when the control pin is pulled to a log.
