LK112S - Low noise and low drop voltage regulator

STMicroelectronics

The LK112S by STMicroelectronics is a Low noise and low drop voltage regulator. Below is the official datasheet preview.

📥 Download Datasheet

LK112S Low noise and low drop voltage regulator by STMicroelectronics - Datasheet Preview — Official preview page of the **LK112S** Low noise and low drop voltage regulator datasheet (STMicroelectronics).

Datasheet Details

Part number	LK112S
Manufacturer	STMicroelectronics
File Size	260.47 KB
Description	Low noise and low drop voltage regulator
Datasheet	LK112S-STMicroelectronics.pdf
Additional preview pages of the LK112S datasheet.

LK112S Product details

Description

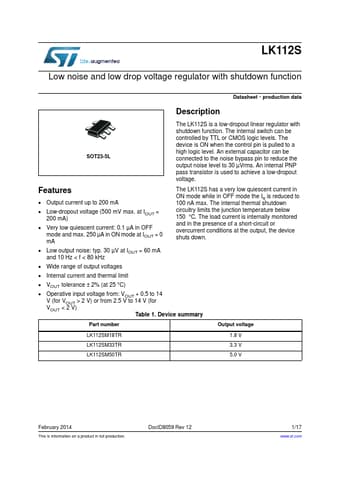

SOT23-5L The LK112S is a low-dropout linear regulator with shutdown function.The internal switch can be controlled by TTL or CMOS logic levels.The device is ON when the control pin is pulled to a high logic level.An external capacitor can be connected to the noise bypass pin to reduce the output noise level to 30 µVrms.An internal PNP pass transistor is used to achieve a low-dropout voltage.

Features

Output current up to 200 mA.
Low-dropout voltage (500 mV max. at IOUT = 200 mA).
Very low quiescent current: 0.1 µA in OFF mode and max. 250 µA in ON mode at IOUT = 0 mA.
Low output noise: typ. 30 µV at IOUT = 60 mA and 10 Hz < f < 80 kHz The LK112S has a very low quiescent current in ON mode while in OFF mode the Iq is reduced to 100 nA max. The internal thermal shutdown circuitry limits the junction temperature below 150 °C. The load current is inter.
