| Part number | 2A07, 2A01 |
|---|---|
| Manufacturer | Taiwan Semiconductor |
| File Size | 191.54 KB |
| Description | Silicon Rectifiers |
| Datasheet |
 2A01_TaiwanSemiconductor.pdf
|
| Note |
This datasheet PDF includes multiple part numbers: 2A07, 2A01. Please refer to the document for exact specifications by model. |

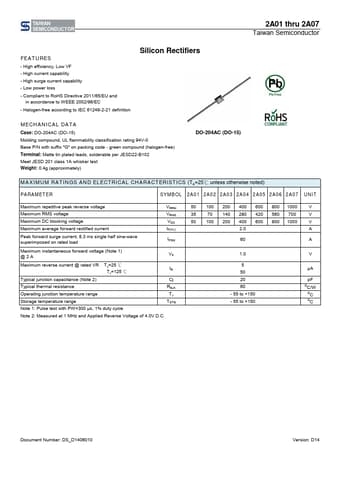

Green compound RATINGS AND CHARACTERISTICS CURVES (TA=25℃ unless otherwise noted) FIG.1- MAXMUM FORWARD CURRENT DERATING CURVE 2.5 FIG.2- TYPICAL REVERSE CHARACTERISTICS 10 INSTANTANEOUS REVERSE CURRENT (μA) AVERAGE FORWARD RECTIFIED CURRENT (A) 2 1.5 RESISTIVE OR INDUCTIVE LOAD 1 0.5 0 0 25 50 75 100 125 150 AMBIENT TEMPERATURE(oC) 1 TJ=125℃ 0.1 0.01 0 TJ=25℃ 20 40 60 80 100 120 140 PERCENT OF RATED PEAK REVERSE VOLTAGE (%) PEAK FORWARD SURGE CURRENT(A) FIG.3- MAXIMUM NON-REPETITI
