SRAD850, SRAD820 - (SRAD820 - SRAD860) Schottky Barrier Rectifiers

Name: SRAD850
SKU: SRAD850-661776

Taiwan Semiconductor Company

The SRAD850 by Taiwan Semiconductor Company is a (SRAD820 - SRAD860) Schottky Barrier Rectifiers. Below is the official datasheet preview.

📥 Download Datasheet

SRAD850 (SRAD820 - SRAD860) Schottky Barrier Rectifiers by Taiwan Semiconductor Company - Datasheet Preview — Official preview page of the **SRAD850** (SRAD820 - SRAD860) Schottky Barrier Rectifiers datasheet (Taiwan Semiconductor Company).

Datasheet Details

Part number	SRAD850, SRAD820
Manufacturer	Taiwan Semiconductor Company
File Size	82.57 KB
Description	(SRAD820 - SRAD860) Schottky Barrier Rectifiers
Datasheet	SRAD820_TaiwanSemiconductorCompany.pdf
Note	This datasheet PDF includes multiple part numbers: SRAD850, SRAD820. Please refer to the document for exact specifications by model.

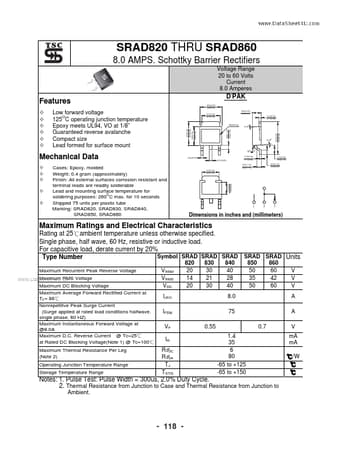

Additional preview pages of the SRAD850 datasheet.

SRAD850 Product details

Features

Low forward voltage 125OC operating junction temperature Epoxy meets UL94, VO at 1/8” Guaranteed reverse avalanche Compact size Lead formed for surface mount D-PAK .250(6.55) .246(6.45) .211(5.36) .207(5.26) .093(2.35) .089(2.25) .013(0.54) .011(0.48) Marking .274(6.95) .270(6.85) .250(6.55) .246(6.45) .043(1.10) .035(0.90) 0 5 .384(9.75) .364(9.25) .112(2.85) .092(2.35) .059(1.45) .039(0.95) 0 5 30 5 Mechanical Data Cases: Epoxy, molded Weight: 0.4 gram (approximately) Finish: All extern.
