SRAD320 - (SRAD320 - SRAD360) Schottky Barrier Rectifiers

Name: SRAD320
SKU: SRAD320-661768

Taiwan Semiconductor Company

The SRAD320 by Taiwan Semiconductor Company is a (SRAD320 - SRAD360) Schottky Barrier Rectifiers. Below is the official datasheet preview.

📥 Download Datasheet

SRAD320 (SRAD320 - SRAD360) Schottky Barrier Rectifiers by Taiwan Semiconductor Company - Datasheet Preview — Official preview page of the **SRAD320** (SRAD320 - SRAD360) Schottky Barrier Rectifiers datasheet (Taiwan Semiconductor Company).

Datasheet Details

Part number	SRAD320
Manufacturer	Taiwan Semiconductor Company
File Size	82.30 KB
Description	(SRAD320 - SRAD360) Schottky Barrier Rectifiers
Datasheet	SRAD320_TaiwanSemiconductorCompany.pdf

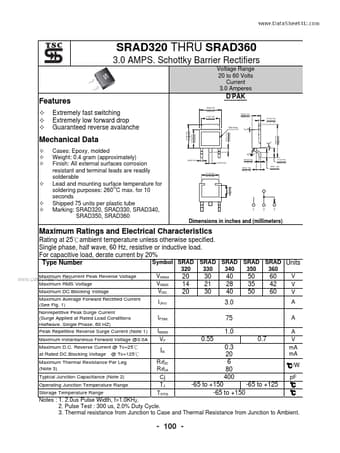

Additional preview pages of the SRAD320 datasheet.

SRAD320 Product details

Features

Extremely fast switching Extremely low forward drop Guaranteed reverse avalanche .274(6.95) .270(6.85) .250(6.55) .246(6.45) .250(6.55) .246(6.45) .211(5.36) .207(5.26) D-PAK .093(2.35) .089(2.25) .013(0.54) .011(0.48) Marking .043(1.10) .035(0.90) 0 5 .384(9.75) .364(9.25) .112(2.85) .092(2.35) .059(1.45) .039(0.95) Mechanical Data Cases: Epoxy, molded Weight: 0.4 gram (approximately) Finish: All external surfaces corrosion resistant and terminal leads are readily solderable Lead and mount.
