SRAD820 - (SRAD820 - SRAD860) Schottky Barrier Rectifiers

Name: SRAD820
SKU: SRAD820-661773

Taiwan Semiconductor Company

The SRAD820 by Taiwan Semiconductor Company is a (SRAD820 - SRAD860) Schottky Barrier Rectifiers. Below is the official datasheet preview.

📥 Download Datasheet

SRAD820 (SRAD820 - SRAD860) Schottky Barrier Rectifiers by Taiwan Semiconductor Company - Datasheet Preview — Official preview page of the **SRAD820** (SRAD820 - SRAD860) Schottky Barrier Rectifiers datasheet (Taiwan Semiconductor Company).

Datasheet Details

Part number	SRAD820
Manufacturer	Taiwan Semiconductor Company
File Size	82.57 KB
Description	(SRAD820 - SRAD860) Schottky Barrier Rectifiers
Datasheet	SRAD820_TaiwanSemiconductorCompany.pdf

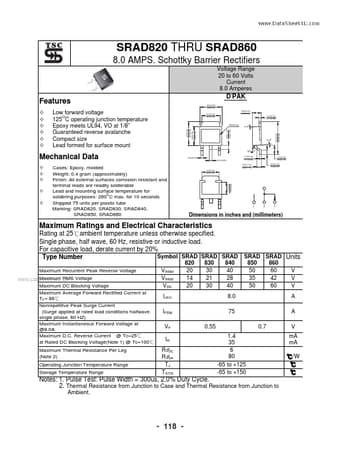

Additional preview pages of the SRAD820 datasheet.

SRAD820 Product details

Features

Low forward voltage 125OC operating junction temperature Epoxy meets UL94, VO at 1/8” Guaranteed reverse avalanche Compact size Lead formed for surface mount D-PAK .250(6.55) .246(6.45) .211(5.36) .207(5.26) .093(2.35) .089(2.25) .013(0.54) .011(0.48) Marking .274(6.95) .270(6.85) .250(6.55) .246(6.45) .043(1.10) .035(0.90) 0 5 .384(9.75) .364(9.25) .112(2.85) .092(2.35) .059(1.45) .039(0.95) 0 5 30 5 Mechanical Data Cases: Epoxy, molded Weight: 0.4 gram (approximately) Finish: All extern.
