MBR3520 - SCHOTTKY DIODES

Name: MBR3520
SKU: MBR3520-1125449

TRANSYS

The MBR3520 by TRANSYS is a SCHOTTKY DIODES. Below is the official datasheet preview.

Datasheet Details

Part number	MBR3520
Manufacturer	TRANSYS
File Size	110.83 KB
Description	SCHOTTKY DIODES
Datasheet	MBR3520-TRANSYS.pdf

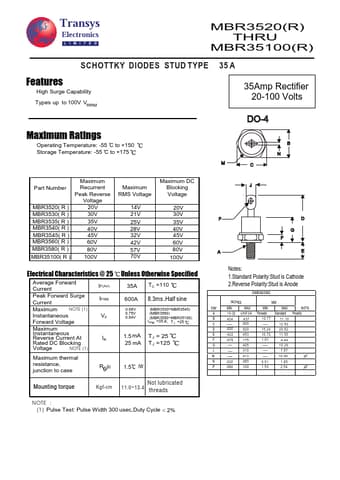

Additional preview pages of the MBR3520 datasheet.

High Surge Capability Types up to 100V VRRM Maximum Ratings Operating Temperature: -55 C to +150 Storage Temperature: -55 C to +175 35 A 35Amp Rectifier 20-100 Volts DO-4 B N MC Part Number Maximum Recurrent Peak Reverse Voltage MBR3520( R ) 20V MBR3530( R ) 30V MBR3535( R ) MBR3540( R ) MBR3545( R ) 35V 40V 45V MBR3560( R ) 60V MBR3580( R ) 80V MBR35100( R ) 100V Maximum RMS Voltage 14V 21V 25V 28V 32V 42V 57V 70V Maximum DC Blocking Voltage 20V 30V 35V 40V 45V 60V 80V 100V Ele.
