MBR351, MBR3505 - SINGLE-PHASE SILICON BRIDGE RECTIFIER

Name: MBR351
SKU: MBR351-595764

Dc Components

The MBR351 by Dc Components is a SINGLE-PHASE SILICON BRIDGE RECTIFIER. Below is the official datasheet preview.

Datasheet Details

Part number	MBR351, MBR3505
Manufacturer	Dc Components
File Size	310.81 KB
Description	SINGLE-PHASE SILICON BRIDGE RECTIFIER
Datasheet	MBR3505_DcComponents.pdf
Note	This datasheet PDF includes multiple part numbers: MBR351, MBR3505. Please refer to the document for exact specifications by model.

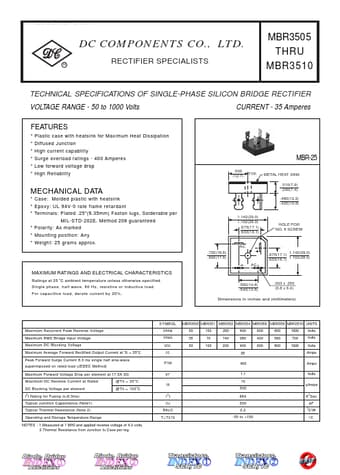

Additional preview pages of the MBR351 datasheet.

Plastic case with heatsink for Maximum Heat Dissipation.
Diffused Junction.
High current capability.
Surge overload ratings - 400 Amperes.
Low forward voltage drop.
High Reliability .500 (12.7) TYP. METAL HEAT SINK .310(7.9) .290(7.4) .480(12.2) .425(10.8) 1.142(29.0) 1.102(28.0) .673(17.1) .633(16.1) MBR-25.
