MBR3505 - SINGLE-PHASE SILICON BRIDGE RECTIFIER

Name: MBR3505
SKU: MBR3505-595763

Dc Components

The MBR3505 by Dc Components is a SINGLE-PHASE SILICON BRIDGE RECTIFIER. Below is the official datasheet preview.

Datasheet Details

Part number	MBR3505
Manufacturer	Dc Components
File Size	310.81 KB
Description	SINGLE-PHASE SILICON BRIDGE RECTIFIER
Datasheet	MBR3505_DcComponents.pdf

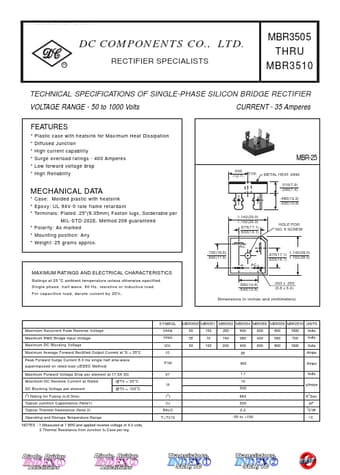

Additional preview pages of the MBR3505 datasheet.

Plastic case with heatsink for Maximum Heat Dissipation.
Diffused Junction.
High current capability.
Surge overload ratings - 400 Amperes.
Low forward voltage drop.
High Reliability .500 (12.7) TYP. METAL HEAT SINK .310(7.9) .290(7.4) .480(12.2) .425(10.8) 1.142(29.0) 1.102(28.0) .673(17.1) .633(16.1) MBR-25.
