TMR6-0510 Description

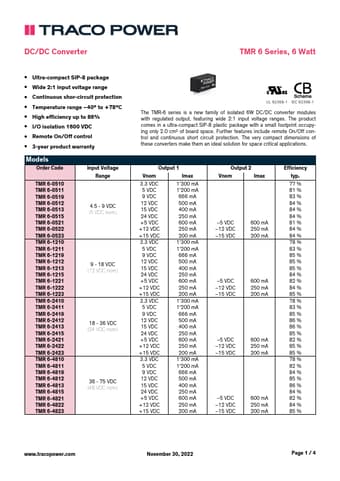

DC/DC Converter TMR 6 Series, 6 Watt * Ultra-compact SIP-8 package * Wide 2:1 input voltage range * Continuous shor-circuit protection * Temperature range *40° to +78°C * High efficiency up to 86% * I/O isolation 1600 VDC * Remote On/Off control * 3-year product warranty Models Order Code TMR 6-0510 TMR 6-0511 TMR 6-0519 TMR 6-0512 TMR 6-0513 TMR 6-0515 TMR 6-0521 TMR 6-0522 TMR 6-0523 TMR 6-1210 TMR 6-1211 TMR 6-1219 TMR

Features

* include remote On/Off control and continuous short circuit protection. The very compact dimensions of these converters make them an ideal solution for space critical applications. Output 1 Vnom Imax 3.3 VDC 5 VDC 9 VDC 12 VDC 15 VDC 24 VDC +5 VDC +12 VDC +15 VDC 1'300 mA 1'200 mA 666 mA 500 mA
