TMR6318 100DPI 180mm TMR Magnetic Image Sensor

MultiDimension

TMR6318 Description

Datasheet REVISED 08/2018 TMR6318 100DPI 180mm TMR Magnetic Image Sensor General .
The TMR6318 is a 720pixels, 100DPI magnetic image sensor (MIS) module.

TMR6318 Features

* a 1-channel analog output to achieve a scanning rate of 150usec/line @ 5MHz pixel rate; Factory calibrated sensitivity of each pixel. Key Features
* TMR sensor and magnet are integrated in one module
* 100DPI resolution, 180mm detection width with 720 pixels
* 1-channel analog output

TMR6318 Applications

* Currency Verification
* Magnetic Document Scanning
* Non Destructive Testing Ordering Information Part Number Built-in Magnet TMR6318 Yes TMR6318N No Block Diagram 1 2 3 4 PGA PGA PGA PGA Shift Register SI CLK Multiplexer PGA VOUT 719 720 PGA PGA Power Supply

📥 Download Datasheet

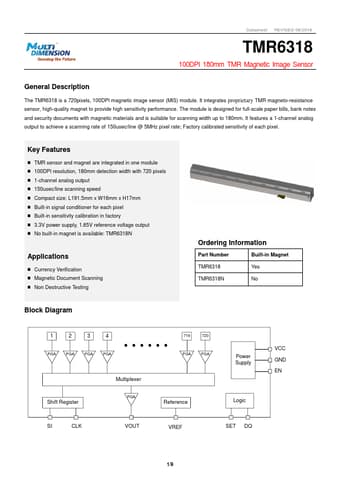

TMR6318 Datasheet Preview — Preview of TMR6318 PDF

Datasheet Details

Part number: TMR6318
Manufacturer: MultiDimension
File Size: 932.40 KB
Datasheet: TMR6318-MultiDimension.pdf
Description: 100DPI 180mm TMR Magnetic Image Sensor
