TMR6306 - 100DPI 54mm TMR Magnetic Image Sensor

Description

The TMR6306 is a 216pixels, 100DPI magnetic image sensor (MIS) module.

It integrates proprietary TMR magneto-resistance sensor, high-quality magnet to provide high sensitivity performance.

Features

  • a 1-channel analog output to achieve a scanning rate of 50usec/line @ 5MHz pixel rate; Factory calibrated sensitivity of each pixel. Key Features.
  • TMR sensor and magnet are integrated in one module.
  • 100DPI resolution, 54mm detection width with 216 pixels.
  • 1-channel analog output.
  • 50usec/line scanning speed.
  • Compact size: L64mm x W11.5mm x H15.2mm.
  • Built-in signal conditioner for each pixel.
  • Built-in sensitivity calibration in factory.
  • 3.3V power supply, 1.

📥 Download Datasheet

Datasheet Details

Part number TMR6306
Manufacturer MultiDimension
File Size 703.99 KB
Description 100DPI 54mm TMR Magnetic Image Sensor
Datasheet download datasheet TMR6306 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
TMR6-0510 DC/DC Converter TRACO POWER
TMR6-0511 DC/DC Converter TRACO POWER
TMR6-0512 DC/DC Converter TRACO POWER
TMR6-0513 DC/DC Converter TRACO POWER
TMR6-0515 DC/DC Converter TRACO POWER

Other Datasheets by MultiDimension

Part Number Description
TMR6318 100DPI 180mm TMR Magnetic Image Sensor
TMR6318C 72-Channels 180mm TMR Magnetic Image Sensors
TMR6206D 6-Channels TMR PATTERN RECOGNITION SENSOR
TMR6206L 6-Channels TMR Magnetic Pattern Recognition Sensor
TMR6209 9-Channels TMR Magnetic Pattern Recognition Sensor

Full PDF Text Transcription

Click to expand full text

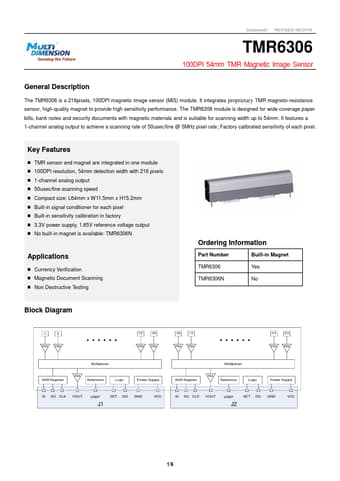

Datasheet REVISED 08/2018 TMR6306 100DPI 54mm TMR Magnetic Image Sensor General Description The TMR6306 is a 216pixels, 100DPI magnetic image sensor (MIS) module. It integrates proprietary TMR magneto-resistance sensor, high-quality magnet to provide high sensitivity performance. The TMR6306 module is designed for wide coverage paper bills, bank notes and security documents with magnetic materials and is suitable for scanning width up to 54mm. It features a 1-channel analog output to achieve a scanning rate of 50usec/line @ 5MHz pixel rate; Factory calibrated sensitivity of each pixel.
