B82789C0 Data and signal line choke

TDK

B82789C0 Description

Data and signal line chokes SIMDAD 1812, common-mode chokes 42 V AC/80 V DC, 11 … 100 PH, 150 … 300 mA Series/Type: B82789C0/S0 aDat~e:í~=pÜÉÉí Au.

B82789C0 Features

* Temperature range up to +150 °C (B82789C0/S0
* H)
* Suitable for lead-free reflow soldering as referenced in JEDEC J-STD 020D
* For gold-plated terminals conductive adhesion possible
* Qualified to AEC-Q200
* RoHS-compatible Function
* B82789C0: Suppression of asymmetrica

B82789C0 Applications

* Automotive applications, e. g. CAN and FlexRay bus
* Industrial field bus systems
* Line cards for telecom Terminals Tinned terminals (B82789C0/S0
* 002)
* Base material CuSn6
* Layer composition Ni, Ag, Sn1)
* Lead-free tinned Gold-plated terminals (B82789C0/S0
* 001)

📥 Download Datasheet

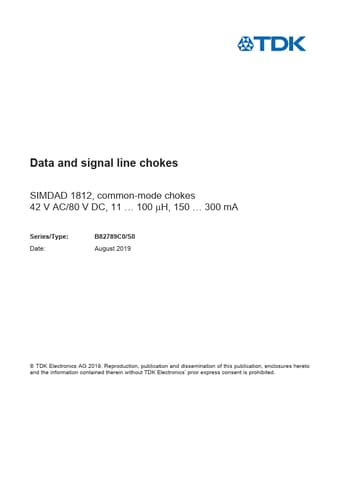

B82789C0 Datasheet Preview — Preview of B82789C0 PDF

Datasheet Details

Part number: B82789C0
Manufacturer: TDK
File Size: 238.05 KB
Datasheet: B82789C0-TDK.pdf
Description: Data and signal line choke
