B82719C2 Data Line Chokes

B82719C2 Description

Data Line Chokes for ISDN S0 Interface Construction * Current-compensated ring core quad choke with ferrite core * Bifilar winding B82719C2 .

B82719C2 Features

* Case flame-retardant as per UL 94 V-0

B82719C2 Applications

* Suppression of asymmetrical interference coupled in on lines, whereas data signals up to some MHz can pass unaffectedly Marking Manufacturer, ordering code, date of manufacture (coded) Dimensional drawing 7,5±0,2 2,5±0,2 1 4 1 2 3 4 8 5 6,8 max. 5±0,2 9,2 max. 4,5±0,1 8 7 4 5 5±0,1 6,2 ma

📥 Download Datasheet

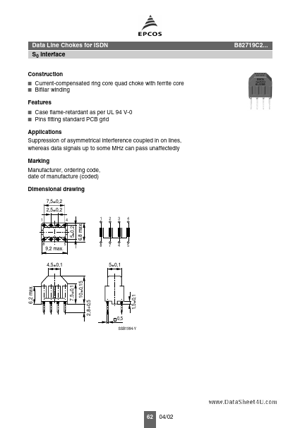

Preview of B82719C2 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
B82719C2
Manufacturer
EPCOS
File Size
70.13 KB
Datasheet
B82719C2_EPCOS.pdf
Description
Data Line Chokes
