B82719C0 UK0/UPN Interface / xDSL Transformers

B82719C0 Description

Data Line Chokes for Telecommunications UK0/UPN Interface; xDSL Transformers Construction * Current-compensated ring core double choke with ferrit.

B82719C0 Features

* Case flame-retardant as per UL 94 V-0

B82719C0 Applications

* Suppression of asymmetrical interference coupled in on lines, whereas data signals up to some MHz can pass unaffectedly Marking Manufacturer, ordering code, date of manufacture (coded) Dimensional drawing 7,5±0,2 1 www. DataSheet4U. com 2 1 2 4 3 6,8 max. 5±0,2 9,2 max. 4,5±0,1 4 3 5±0,1 6

📥 Download Datasheet

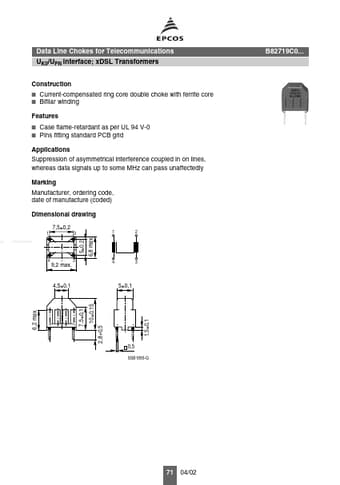

Preview of B82719C0 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
B82719C0
Manufacturer
EPCOS
File Size
89.80 KB
Datasheet
B82719C0_EPCOS.pdf
Description
UK0/UPN Interface / xDSL Transformers
