SAC50 - 500W Low Capacitance Transient Voltage Suppressor

TAITRON

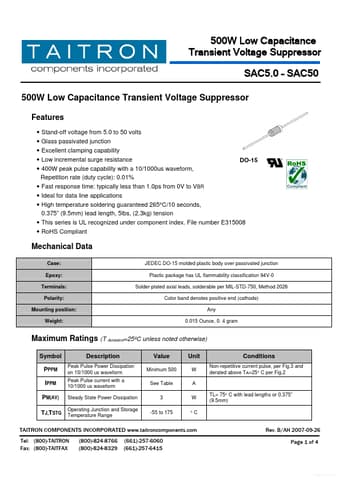

SAC50 Datasheet Preview — Preview of SAC50 PDF

Datasheet Details

Part number	SAC50
Manufacturer	TAITRON
File Size	155.12 KB
Description	500W Low Capacitance Transient Voltage Suppressor
Datasheet	SAC50_TAITRON.pdf

SAC50 Product details

Description

Peak Pulse Power Dissipation on 10/1000 us waveform Peak Pulse current with a 10/1000 us waveform Steady State Power Dissipation Operating Junction and Storage Value Minimum 500 See Table 3 -55 to 175 Unit W A W °C Conditions Non-repetitive current pulse, per Fig.3 and derated above TA=25° C per Fig.2 TL= 75° C with lead lengths or 0.375” (9.5mm) TJ,TSTG Temperature Range TAITRON COMPONENTS INCORPORATED www.taitroncomponents.com Tel: (800)-TAITRON Fax: (800)-TAITFAX (800)-824-8766 (800)-82

Features

Stand-off voltage from 5.0 to 50 volts Glass passivated junction Excellent clamping capability Low incremental surge resistance DO-15.
400W peak pulse capability with a 10/1000us waveform, Repetition rate (duty cycle): 0.01%.
Fast response time: typically less than 1.0ps from 0V to VBR.
Ideal for data line.
