| Part number | SAC18, SAC50 |
|---|---|
| Manufacturer | TAITRON |
| File Size | 155.12 KB |
| Description | 500W Low Capacitance Transient Voltage Suppressor |
| Datasheet |

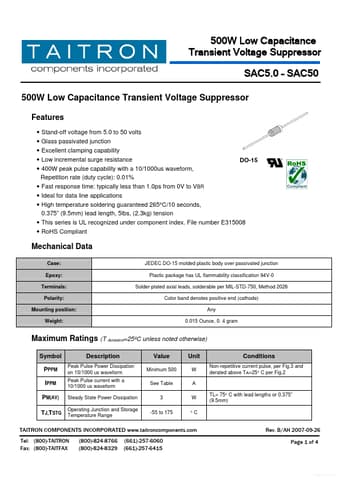

 SAC50_TAITRON.pdf
|
| Note |
This datasheet PDF includes multiple part numbers: SAC18, SAC50. Please refer to the document for exact specifications by model. |
Peak Pulse Power Dissipation on 10/1000 us waveform Peak Pulse current with a 10/1000 us waveform Steady State Power Dissipation Operating Junction and Storage Value Minimum 500 See Table 3 -55 to 175 Unit W A W °C Conditions Non-repetitive current pulse, per Fig.3 and derated above TA=25° C per Fig.2 TL= 75° C with lead lengths or 0.375” (9.5mm) TJ,TSTG Temperature Range TAITRON COMPONENTS INCORPORATED www.taitroncomponents.com Tel: (800)-TAITRON Fax: (800)-TAITFAX (800)-824-8766 (800)-82
