RS205, RS201 - SILICON BRIDGE RECTIFIERS

The RS205 by Sunmate is a SILICON BRIDGE RECTIFIERS. Below is the official datasheet preview.

📥 Download Datasheet

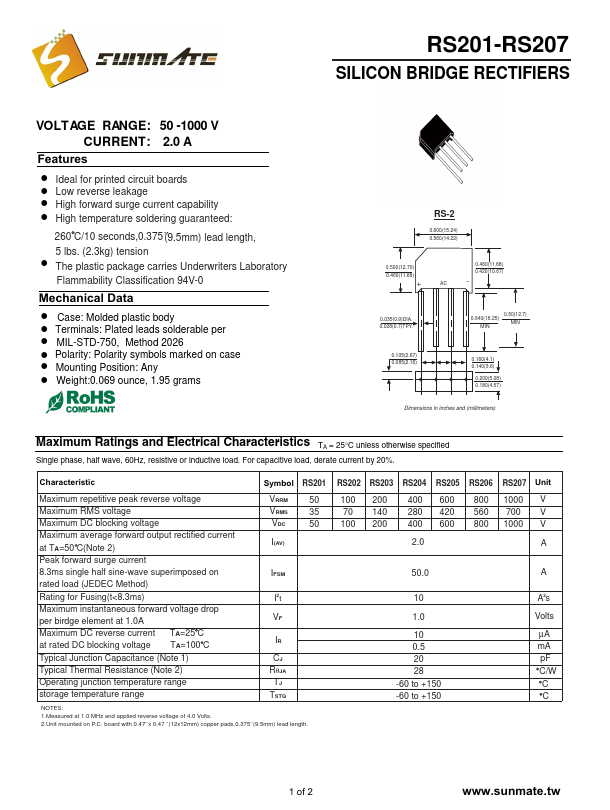

Official preview page of the RS205 SILICON BRIDGE RECTIFIERS datasheet (Sunmate).

Datasheet Details

Part number RS205, RS201
Manufacturer Sunmate
File Size 664.75 KB
Description SILICON BRIDGE RECTIFIERS
Datasheet download datasheet RS201-Sunmate.pdf
Note This datasheet PDF includes multiple part numbers: RS205, RS201.
Please refer to the document for exact specifications by model.

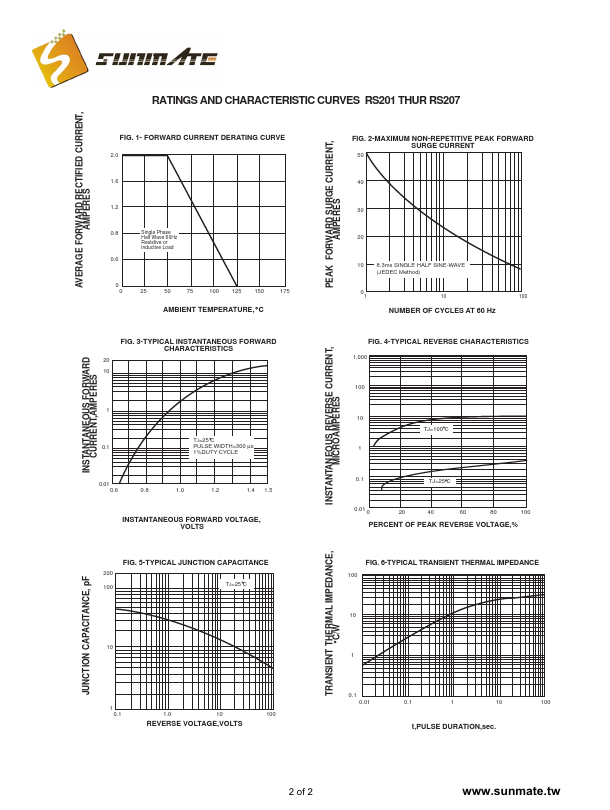

Additional preview pages of the RS205 datasheet.

RS205 Product details

Features
