RS205L SINGLE-PHASE SILICON BRIDGE RECTIFIER

RS205L Description

RECTRON SEMICONDUCTOR TECHNICAL SPECIFICATION RS201L THRU RS207L SINGLE-PHASE SILICON BRIDGE RECTIFIER VOLTAGE RANGE 50 to 1000 Volts CURRENT 2.0 Am.

RS205L Features

* Ideal for printed circuit board Surge overload rating: 50 amperes peak Mounting position: Any Weight: 2.74 grams MECHANICAL DATA
* UL listed the recognized component directory, file #E94233
* Epoxy: Device has UL flammability classification 94V-O .710 (18.0) .670 (17

📥 Download Datasheet

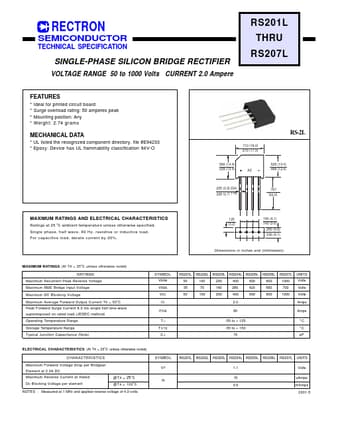

Preview of RS205L PDF
datasheet Preview Page 2
