RS205, RS201 SINGLE PHASE BRIDGE RECTIFIER

RS205 Description

SINGLE PHASE BRIDGE RECTIFIER RS201 THRU RS207 KBP005 THRUKBP10 VOLTAGE RANGE CURRENT 50 to 1000 Volts 2.0 Ampere .

RS205 Features

* Low cost
* This series in UL recognized under component index, file number E127707
* High forward surge current capacity
* Ideal for printed circuit board
* High temperature soldering guaranteed: 260OC / 10 seconds, 0.375”(9.5mm) lead length at 5 lbs. (2.3kg

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RS205, RS201. Please refer to the document for exact specifications by model.

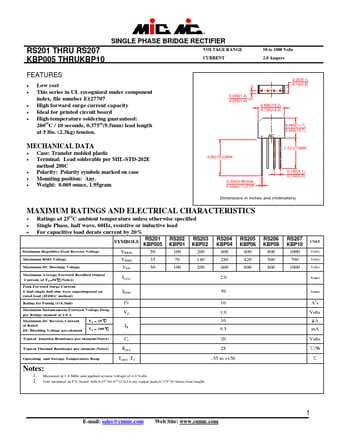

datasheet Preview Page 2

Datasheet Details

Part number
RS205, RS201
Manufacturer
MIC
File Size
107.12 KB
Datasheet
RS201-MIC.pdf
Description
SINGLE PHASE BRIDGE RECTIFIER
Note
This datasheet PDF includes multiple part numbers: RS205, RS201.
Please refer to the document for exact specifications by model.
