RS2051 Novel Low Cost Green-Mode PWM Controller

RS2051 Description

RS2051 Novel Low Cost Green-Mode PWM Controller with Soft Start & Latch Mode Page No.: 1/13 .
The RS2051 is a highly integrated low cost current mode PWM controller, which is ideal for small power current mode of offline AC-DC fly-back converte.

RS2051 Features

* Low Cost, PWM&PFM&CRM (Cycle Reset Mode) Low Start-up Current (about 1.5μA) Low Operating Current (about 2.2mA) Current Mode Operation Under Voltage Lockout (UVLO) Built-in Synchronized Slope Compensation Built-in fixed soft start with 1.2mS Built-in Frequency jitter for better EMI Signature Program

RS2051 Applications

* Making use of external resistors, the IC changes the operating frequency and automatically enters the PFM/CRM (Cycle Reset Mode) under light-load/zero-load conditions. This can minimize standby power consumption and achieve power-saving functions. With a very low start-up current, the RS2051 could

📥 Download Datasheet

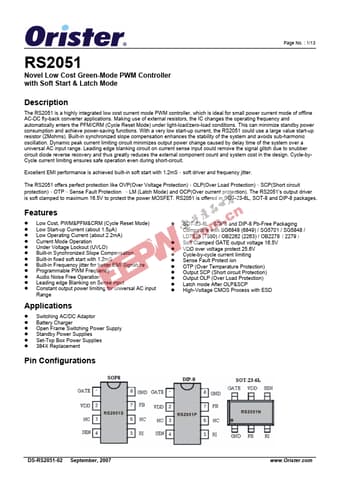

Preview of RS2051 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RS2051
Manufacturer
Orister
File Size
526.18 KB
Datasheet
RS2051-Orister.pdf
Description
Novel Low Cost Green-Mode PWM Controller
