MCL103A - SURFACE MOUNT SCHOTTKY BARRIER DIODE

Sunmate

Datasheet Details

Part number	MCL103A
Manufacturer	Sunmate
File Size	468.56 KB
Description	SURFACE MOUNT SCHOTTKY BARRIER DIODE
Datasheet	MCL103A-Sunmate.pdf

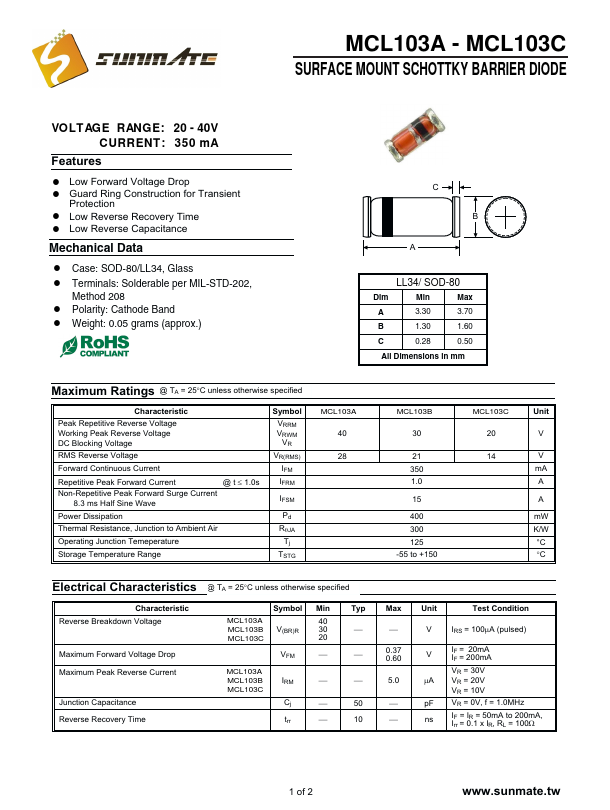

! Low Forward Voltage Drop ! Guard Ring Construction for Transient Protection ! Low Reverse Recovery Time ! Low Reverse Capacitance Mechanical Data ! Case: SOD-80/LL34, Glass ! Terminals: Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: 0.05 grams (approx. ) C B A LL34/ SOD-80 Dim Min Max A 3.30 3.70 B 1.30 1.60 C 0.28 0.50 All Dimensions in mm Maximum Ratings @ TA = 25°C unless otherwise specified Characteristic Peak Repetitive Reverse Voltage Working P.
