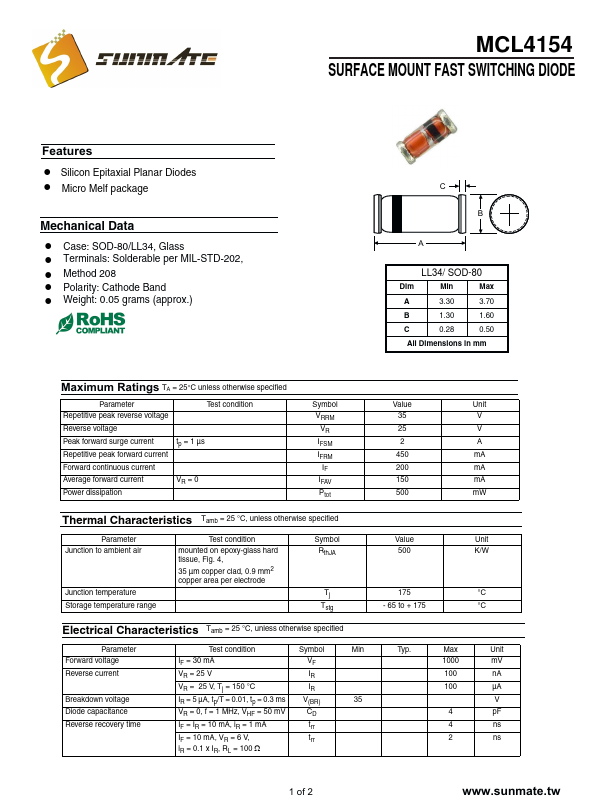

MCL4154 - SURFACE MOUNT FAST SWITCHING DIODE

Sunmate

Datasheet Details

Part number	MCL4154
Manufacturer	Sunmate
File Size	1.21 MB
Description	SURFACE MOUNT FAST SWITCHING DIODE
Datasheet	MCL4154-Sunmate.pdf

! Silicon Epitaxial Planar Diodes ! Micro Melf package Mechanical Data ! Case: SOD-80/LL34, Glass ! Terminals: Solderable per MIL-STD-202, ! Method 208 ! Polarity: Cathode Band ! Weight: 0.05 grams (approx. ) C B A LL34/ SOD-80 Dim Min Max A 3.30 3.70 B 1.30 1.60 C 0.28 0.50 All Dimensions in mm Maximum Ratings TA = 25°C unless otherwise specified Parameter Test condition Symbol Value Unit Repetitive peak reverse voltage VRRM 35 V Reverse voltage VR 25 V Peak forwar.
