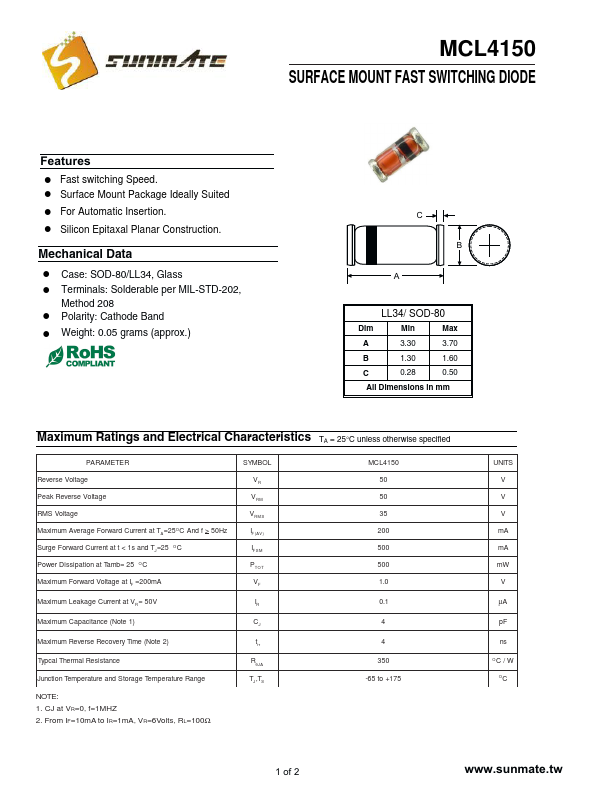

MCL4150 - SURFACE MOUNT FAST SWITCHING DIODE

Sunmate

Datasheet Details

Part number	MCL4150
Manufacturer	Sunmate
File Size	0.96 MB
Description	SURFACE MOUNT FAST SWITCHING DIODE
Datasheet	MCL4150-Sunmate.pdf

! Fast switching Speed. ! Surface Mount Package Ideally Suited ! For Automatic Insertion. ! Silicon Epitaxal Planar Construction. Mechanical Data ! Case: SOD-80/LL34, Glass ! Terminals: Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: 0.05 grams (approx. ) C B A LL34/ SOD-80 Dim Min Max A 3.30 3.70 B 1.30 1.60 C 0.28 0.50 All Dimensions in mm Maximum Ratings and Electrical Characteristics TA = 25°C unless otherwise specified.
