M100J - AXIAL LEADED SILICON RECTIFIER DIODES

Product Overview

Sunmate

Part number	M100J
Manufacturer	Sunmate
File Size	1.16 MB
Description	AXIAL LEADED SILICON RECTIFIER DIODES
Datasheet	M100J Datasheet
Note	This datasheet PDF includes multiple part numbers: M100J, M100A. Please refer to the document for exact specifications by model.

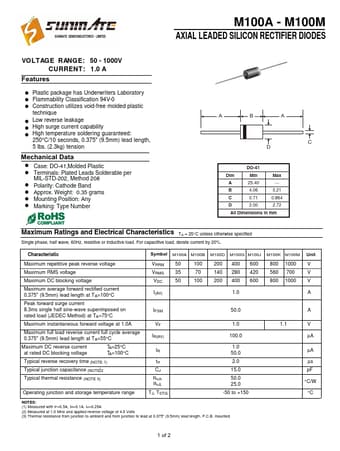

Additional preview pages of the M100J datasheet.

! Plastic package has Underwriters Laboratory ! Flammability Classification 94V-0 ! Construction utilizes void-free molded plastic technique ! Low reverse leakage ! High surge current capability ! High temperature soldering guaranteed: 250°C/10 seconds, 0.375" (9.5mm) lead length, 5 lbs. (2.3kg) tension Mechanical Data ! Case: DO-41,Molded Plastic ! Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Approx. Weight: 0.35 grams ! Mounting Position: Any ! Mark.
