M100B GENERAL PURPOSE PLASTIC RECTIFIER

General Semiconductor

Description

M100A THRU M100M GENERAL PURPOSE PLASTIC RECTIFIER Reverse Voltage - 50 to 1000 Volts DO-204AL Forward Current - 1.0 Ampere .

📥 Download Datasheet

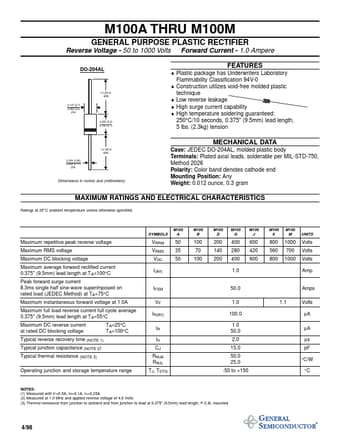

M100B Datasheet Preview — Preview of M100B PDF

Datasheet Specifications

Part number: M100B
Manufacturer: General Semiconductor
File Size: 44.86 KB
Datasheet: M100B_GeneralSemiconductor.pdf
Description: GENERAL PURPOSE PLASTIC RECTIFIER

Features

* 1.0 (25.4) MIN. 0.107 (2.7) 0.080 (2.0) DIA. 0.205 (5.2) 0.160 (4.1)
* Plastic package has Underwriters Laboratory Flammability Classification 94V-0
* Construction utilizes void-free molded plastic technique
* Low reverse leakage
* High surge current capability
