M100G GENERAL PURPOSE PLASTIC RECTIFIER

M100G Description

M100A THRU M100M GENERAL PURPOSE PLASTIC RECTIFIER Reverse Voltage - 50 to 1000 Volts DO-204AL Forward Current - 1.0 Ampere .

M100G Features

* 1.0 (25.4) MIN. 0.107 (2.7) 0.080 (2.0) DIA. 0.205 (5.2) 0.160 (4.1)
* Plastic package has Underwriters Laboratory Flammability Classification 94V-0
* Construction utilizes void-free molded plastic technique
* Low reverse leakage
* High surge current capability

📥 Download Datasheet

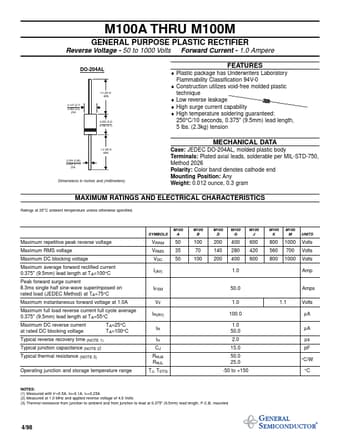

Preview of M100G PDF
datasheet Preview Page 2

Datasheet Details

Part number
M100G
Manufacturer
General Semiconductor
File Size
44.86 KB
Datasheet
M100G_GeneralSemiconductor.pdf
Description
GENERAL PURPOSE PLASTIC RECTIFIER
