M1004204 Serial MRAM Memory

M1004204 Description

High Performance M1004204/M1008204/M1016204 Serial MRAM Memory M3004204/M3008204/M3016204 .
Mxxxx204 is a magneto-resistive random-access memory (MRAM).

M1004204 Features

* Interface
* Serial Peripheral Interface QSPI (4-4-4)
* Single Data Rate Mode: 108MHz
* Double Data Rate Mode: 54MHz
* Technology
* 40nm pMTJ STT-MRAM
* Data Endurance: 1016 write cycles
* Data Retention: 20 years @ 85°C
* Density

M1004204 Applications

* that must store and retrieve data without incurring large latency penalties. It offers low latency, low power, infinite endurance and scalable non-volatile memory technology. Mxxxx204 is available in small footprint 8-pad DFN (WSON) and 8pin SOIC packages. These packages are compatible with similar

📥 Download Datasheet

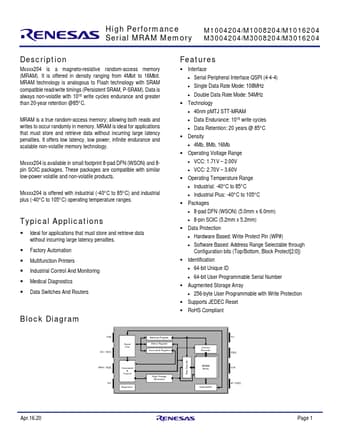

Preview of M1004204 PDF
datasheet Preview Page 2 datasheet Preview Page 3
