1N4151WS

The 1N4151WS is SURFACE MOUNT FAST SWITCHING DIODE designed by Sunmate.

Product Overview

Sunmate

Part number	1N4151WS
Manufacturer	Sunmate
File Size	1.00 MB
Description	SURFACE MOUNT FAST SWITCHING DIODE
Datasheet	1N4151WS-Sunmate.pdf

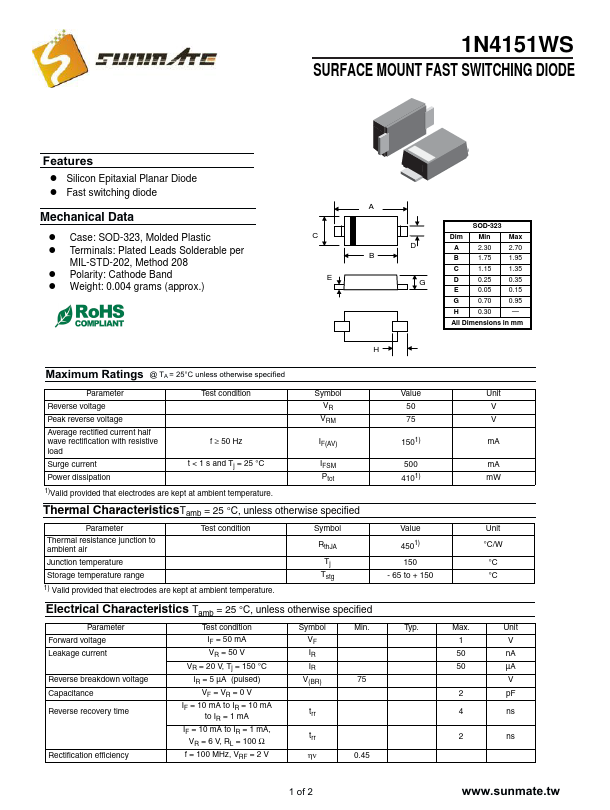

Additional preview pages of the 1N4151WS datasheet.

! Silicon Epitaxial Planar Diode ! Fast switching diode Mechanical Data ! Case: SOD-323, Molded Plastic ! Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: 0.004 grams (approx. ) A SOD-323 C Dim Min Max D A 2.30 2.70 B B 1.75 1.95 C 1.15 1.35 E G D 0.25 0.35 E 0.05 0.15 G 0.70 0.95 H 0.30.
All Dimensions in mm H Maximum Ratings @ TA = 25°C unless otherwise specified Parameter Test condition Reverse voltage Pe.
