1N4149 - SMALL SIGNAL SWITCHING DIODES

Product Overview

Sunmate

Part number	1N4149
Manufacturer	Sunmate
File Size	266.17 KB
Description	SMALL SIGNAL SWITCHING DIODES
Datasheet	1N4149 Datasheet
Additional preview pages of the 1N4149 datasheet.

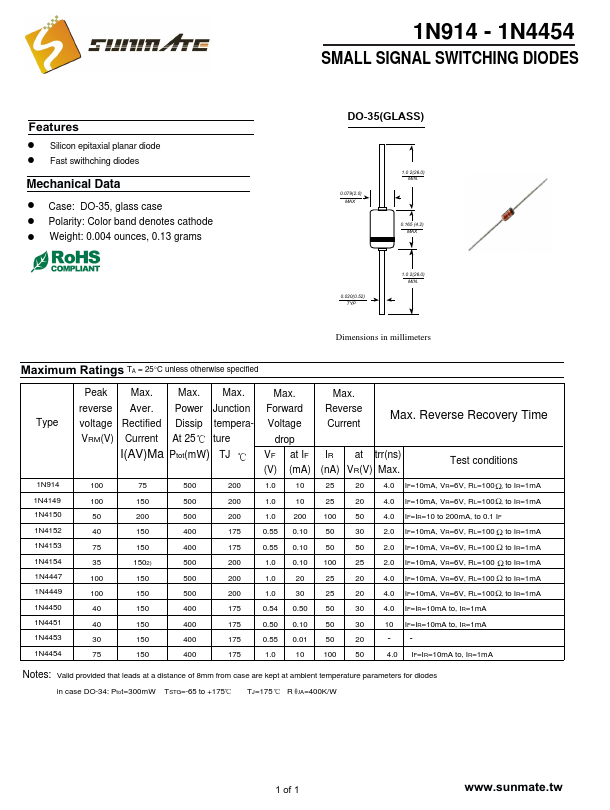

! Silicon epitaxial planar diode ! Fast swithching diodes Mechanical Data ! Case: DO-35, glass case ! Polarity: Color band denotes cathode ! Weight: 0.004 ounces, 0.13 grams DO-35(GLASS) 0.079(2.0) MAX 1.0 2(26.0) MIN. 0.165 (4.2) MAX 0.020(0.52) TYP 1.0 2(26.0) MIN. Dimensions in millimeters Maximum Ratings TA = 25°C unless otherwise specified Type 1N914 1N4149 1N4150 1N4152 1N4153 1N4154 1N4447 1N4449 1N4450 1N4451 1N4453 1N4454 Peak Max. Max. Max. reverse Aver. Power Junction voltage.
