1N4151

The 1N4151 is AXIAL LEADED FAST SWITCHING DIODE designed by Sunmate.

Product Overview

Sunmate

📥 Download Datasheet

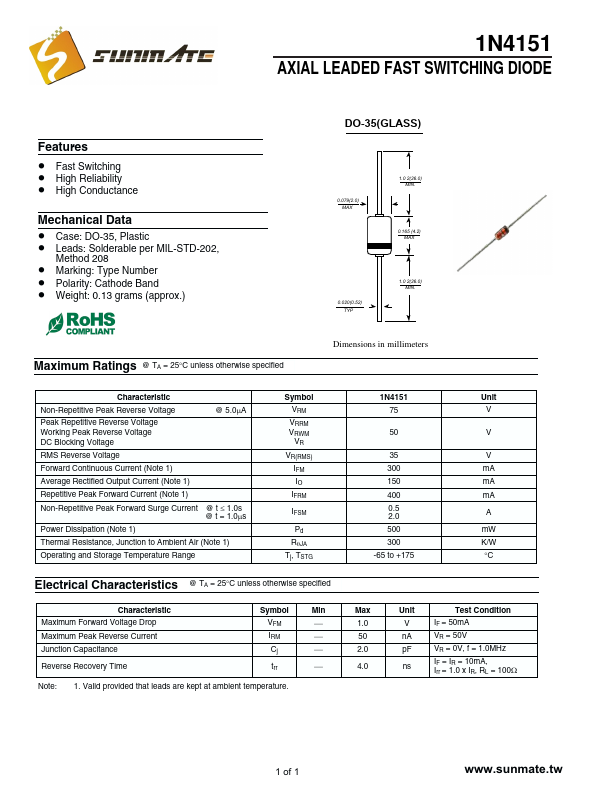

1N4151 AXIAL LEADED FAST SWITCHING DIODE by Sunmate - Datasheet Preview — Datasheet preview – 1N4151

Datasheet Details

Part number	1N4151
Manufacturer	Sunmate
File Size	652.56 KB
Description	AXIAL LEADED FAST SWITCHING DIODE
Datasheet	1N4151-Sunmate.pdf
Additional preview pages of the 1N4151 datasheet.

Product details

Features

Fast Switching.
High Reliability.
High Conductance Mechanical Data.
Case: DO-35, Plastic.
Leads: Solderable per MIL-STD-202, Method 208.
Marking: Type Number.
Polarity: Cathode Band.
Weight: 0.13 grams (approx. ) DO-35(GLASS) 0.079(2.0) MAX 1.0 2(26.0) MIN. 0.165 (4.2) MAX 0.020(0.52) TYP 1.0 2(26.0) MIN. Maximum Ratings @ TA = 25°C unless otherwise specified Dimensions in millimeters Characteristic Non-Repetitive Peak Reverse Voltage @ 5.0mA Pe.
