1N4001 - AXIAL LEADED RECTIFIER DIODES

Datasheet Summary

Features

  • ! Diffused Junction ! Low Forward Voltage Drop ! High Current Capability ! High Reliability ! High Surge Current Capability Mechanical Data ! Case: D O - 4 1 ! Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: 0.35 grams (approx. ) ! Mounting Position: Any ! Marking: Type Number A B A C D DO-41 Dim Min Max A 25.40 ¾ B 4.06 5.21 C 0.71 0.864 D 2.00 2.72 All Dimensions in mm Maximum Ratings and Electrical Characteristics TA = 25°.

📥 Download Datasheet

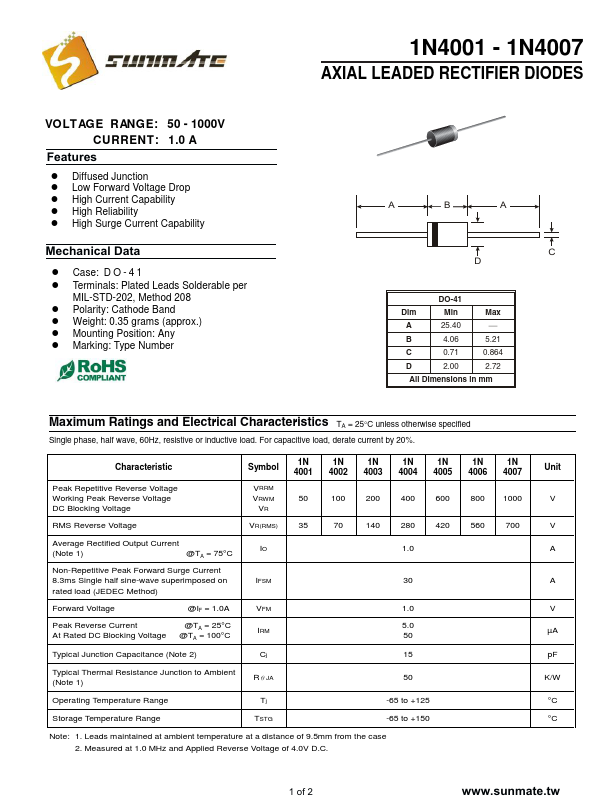

Datasheet preview – 1N4001

Datasheet Details

Part number 1N4001
Manufacturer Sunmate
File Size 144.28 KB
Description AXIAL LEADED RECTIFIER DIODES
Datasheet download datasheet 1N4001 Datasheet

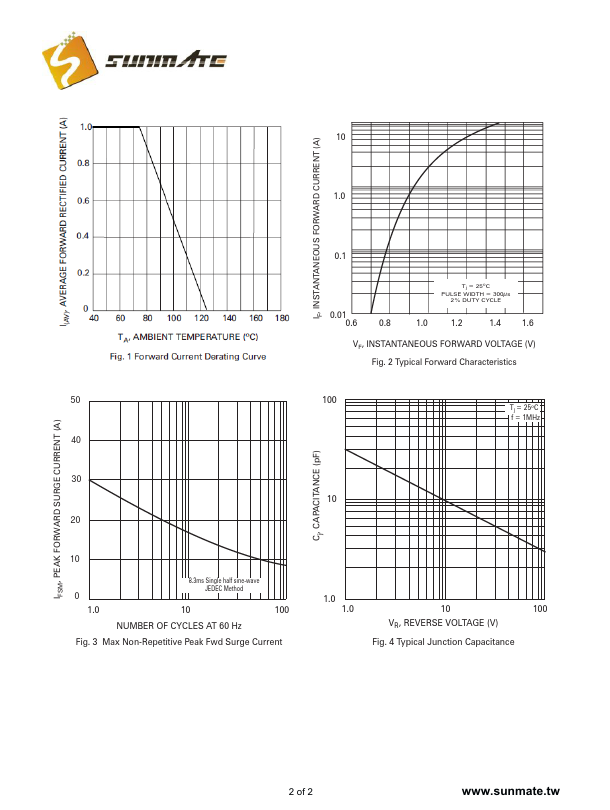

Additional preview pages of the 1N4001 datasheet.

📁 Similar Datasheet

  • 1N4001 - SILICON RECTIFIER DIODES (EIC)
  • 1N4001 - 1.0A STANDARD DIODE (WON-TOP)
  • 1N4001 - 1.0A RECTIFIER (Vishay Siliconix)
  • 1N4001 - Axial Lead Standard Recovery Rectifiers (ON Semiconductor)
  • 1N4001 - General Purpose Rectifiers (Fairchild Semiconductor)
  • 1N4001 - General Purpose Plastic Rectifiers (LRC)
  • 1N4001 - 1.0A RECTIFIER (Diodes)
  • 1N4001 - General Purpose Plastic Rectifiers (New Jersey Semi-Conductor)
  • 1N4001 - 1.0 Amp Rectifier (MCC)
  • 1N4001 - 1.0 SILICON RECTIFIER (SMC Diode)
Other Datasheets by Sunmate
  • 1N4002 - AXIAL LEADED RECTIFIER DIODES
  • 1N4003 - AXIAL LEADED RECTIFIER DIODES
  • 1N4004 - AXIAL LEADED RECTIFIER DIODES
  • 1N4005 - AXIAL LEADED RECTIFIER DIODES
  • 1N4006 - AXIAL LEADED RECTIFIER DIODES
  • 1N4007 - AXIAL LEADED RECTIFIER DIODES
  • 1N4148 - FAST SWITCHING DIODES
  • 1N4149 - SMALL SIGNAL SWITCHING DIODES

Full PDF Text Transcription

Click to expand full text
1N4001 - 1N4007 AXIAL LEADED RECTIFIER DIODES VOLTAGE RANGE: 50 - 1000V CURRENT: 1.0 A Features ! Diffused Junction ! Low Forward Voltage Drop ! High Current Capability ! High Reliability ! High Surge Current Capability Mechanical Data ! Case: D O - 4 1 ! Terminals: Plated Leads Solderable per MIL-STD-202, Method 208 ! Polarity: Cathode Band ! Weight: 0.35 grams (approx.) ! Mounting Position: Any ! Marking: Type Number A B A C D DO-41 Dim Min Max A 25.40 ¾ B 4.06 5.21 C 0.71 0.864 D 2.00 2.72 All Dimensions in mm Maximum Ratings and Electrical Characteristics TA = 25°C unless otherwise specified Single phase, half wave, 60Hz, resistive or inductive load. For capacitive load, derate current by 20%.
