SSW408, SSW-408 - DC-4 GHz High Power GaAs MMIC SPDT Switch

Name: SSW408
SKU: SSW408-526863

📥 Download Datasheet

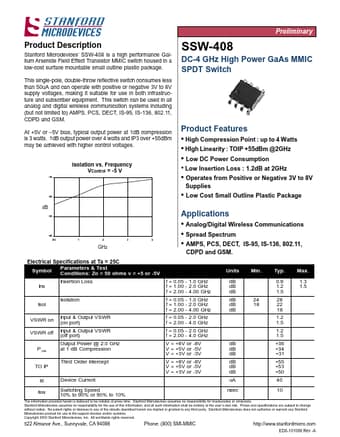

SSW408 Datasheet Preview — This datasheet PDF includes multiple part numbers: SSW408, SSW-408. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	SSW408, SSW-408
Manufacturer	Stanford Microdevices
File Size	104.77 KB
Description	DC-4 GHz High Power GaAs MMIC SPDT Switch
Datasheet	SSW-408_StanfordMicrodevices.pdf
Note	This datasheet PDF includes multiple part numbers: SSW408, SSW-408. Please refer to the document for exact specifications by model.

SSW408 Product details

Description

Stanford Microdevices’ SSW-408 is a high performance Gallium Arsenide Field Effect Transistor MMIC switch housed in a low-cost surface mountable small outline plastic package.

Features

High Compression Point : up to 4 Watts.
HIgh Linearity : TOIP +55dBm @2GHz.
Low DC Power Consumption.
Low Insertion Loss : 1.2dB at 2GHz.
Operates from Positive or Negative 3V to 8V Supplies.
Low Cost Small Outline Plastic Package -20 dB -30 -40 DC 1 2 3 4 GHz.
