ICX282AQF - Diagonal 11mm (Type 2/3) Frame Readout CCD Image Sensor

Sony

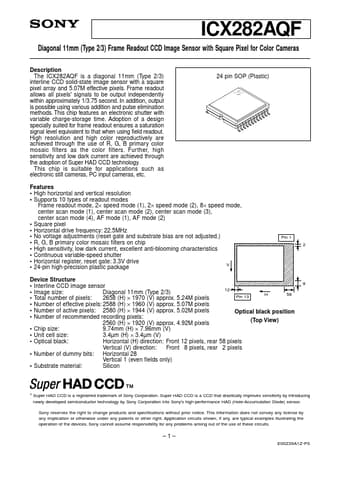

ICX282AQF Datasheet Preview — Preview of ICX282AQF PDF

Datasheet Details

Part number	ICX282AQF
Manufacturer	Sony
File Size	520.57 KB
Description	Diagonal 11mm (Type 2/3) Frame Readout CCD Image Sensor
Datasheet	ICX282AQF-Sony.pdf

ICX282AQF Product details

Description

The ICX282AQF is a diagonal 11mm (Type 2/3) interline CCD solid-state image sensor with a square pixel array and 5.07M effective pixels.Frame readout allows all pixels' signals to be output independently within approximately 1/3.75 second.In addition, output is possible using various addition and pulse elimination methods.This chip

Features

an electronic shutter with variable charge-storage time. Adoption of a design specially suited for frame readout ensures a saturation signal level equivalent to that when using field readout. High resolution and high color reproductively are achieved through the use of R, G, B primary color mosaic filters as the color filters. Further, high sensitivity and low dark current are achieved through the adoption of Super HAD CCD technology. This chip is suitable for.
